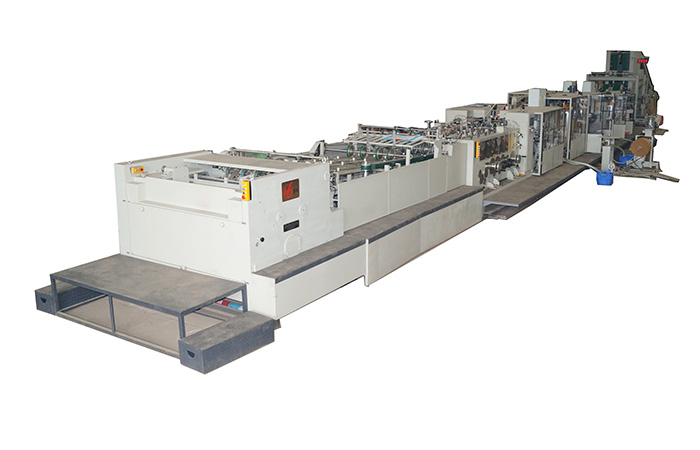

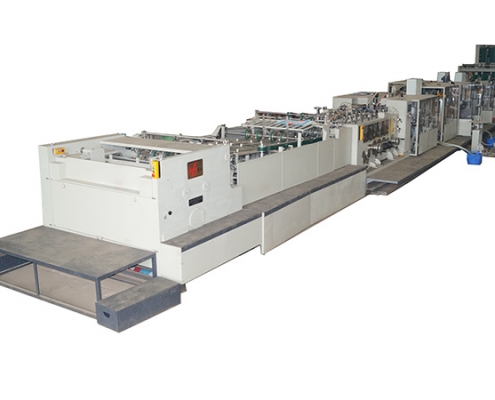

Main Technical Specifications of HD170D-ⅢDJ Square Bottom Machine
The technical conditions and configuration of HD170D-ⅢDJ square bottom machine:
- Maximum Production Output: 200 PCs/min
- Distance of Between Sack Bottom Centers: 260-850mm
- Length of finished valve bag:340-1020mm
- 4. Tube Width: 330-550mm
- 5. Tube Length: 500-1200mm
- TubeBottom Width: 80-170mm
- In order to ensure that the bottom of the bag is opened correctly, the configuration of both ends of the bag tube pressure 45 ° forward and reverse fold line trace, pressure bottom center distance fold line trace and longitudinal slit device. Which is equipped with differential speed components, the device can be adjusted without stopping during equipment operation;
The machine is equipped with bag-end piercing through-type air venting.The hole-piercing component can be completed in-line with 4-6 rows of penetration-type holes.
- Equipped with pasting valve patch station. Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve, internal sleeve valve can be pasted with paper-plastic compound valve and paper valve .
Paper weight 70-100g/㎡,Paper patch of valve width 130-370mm, length 150-250mm,paper plate diameter max 1300 mm.
- Equipped with gluing stations at both ends of the bag bottom
- Has the function of bag bottom pasted reinforcing paperpatch.
Both ends of the paper bag bottom are equipped with an outer reinforcing paper paste device with the color mark reading function driven by the servo motor.The pre-printed reinforced paper plate can be automatically pasted online to the bottom of the bag at both ends. Reinforced paper weight 70-100g/㎡, paper width 80-170mm, paper length 200-450mm, reinforced paper plate maximum diameter 1300mm;
- The valve paper paste device and the external reinforcing group paste device are equipped with servo motor to pull the paper plate to run, and the cutting length of the paper is set on the display screen, which is convenient and fast to operate.
- Valvepaste device, external reinforcing device and gluing device are equipped with differential device, paper and glue before and after the position can be adjusted without stopping.
- The valve pasting device, external reinforcing device and gluing device are equipped with servo system.
These servo system under the control of the automatic control system of the sole bottom machine, can make the position adjustment and parameter setting of each device during the production of new paper bags quick and simple, the automatic control system of the sole bottom machine has the formula function, which remembers the relevant position and parameter of the paper bag. When the paper bag of this specification is re-made next time, only the formula of the paper bag of this specification needs to be retrieved through the display screen, and the position adjustment and parameter setting of each device can be automatically realized with one key, shortening the adjustment time of the replacement specification.
- Equipped with a total of two sets of bag bottom ends molding device left and right, in the bag bottom width of 80-170mm range can be adjusted at will.
- Equipped with one set of Big S clamping output system.
- Total Power:58.18kW. A total of 43sets of motor, which including: 29asynchronous motors , 14 servo motors
- Total Weight: about 50.30 T
- Exterior Dimensions: 00m ×7.00m × 3.44m
- Operation Panel (Touch Screen): DELTA
- Control PLC: DELTA
- Speed Control Equipment: DELTA converter
- Electrical control cabinet: 1 set
- Customer power supply conditions: 380 ± 10V 50HZ 3ф 4L AC
- Equipped with a screw type air compressor (8MPa,1.7m³/ min11kw)
- Working Environment: indoor temperature 10℃-30℃，relative humidity 30%-60%
- Equipped with a gas storage tank（0.8MPa 1.0m3）
- Equipped with acompressed air dryer（0.69kw）
- Equipped with 2 sets vacuum pump(Maximum vacuum: -0.6bar 250m3/hr 5.5kW×2=11kW）
- The surface paint of the bottom machine islight gray.
- Basic configuration:
A) Equipped with a kind of valved paper patchfor making a paper bag size, outer reinforcing paperpatch, and glue laminate for the bottom of the bag.
B) Equipped with 5 sets of glue supply pump station powered by diaphragm pump;
C) 3 groups of paper tray equipped with valve and external reinforcement device;
D) Equipped with a plastic film unwinding holder for attaching compound valve;
Note: Improvements made by the equipment supplier to improve the performance of the equipment will not be notified again.
